The hot air through 3D nonwoven is a type of non-woven fabric produced by using hot air from a drying device to penetrate the fiber web after it has been combed, allowing it to be heated and bonded together.
Material :
ES fiberBasic weight :
16-30gsm, CustomizedWidth :
CustomizedColor :
WhiteOuter roll diameter :
580-760mm, CustomizedProduction process :
Airthrough bondingType :
HydrophilicUsage :
TopsheetApplication :
Baby diaper, adult diaper, sanitary napkinPacking details :
In the roll, inside with paper core, wrapping by transparent film and paper board; Strandard export packingPayment terms :
T/T, L/C at sight, DP at sightDelivery time :
7-15 days after receipt of the deposit or L/CMinimum order quantity :
1000.00kgsProduct Description

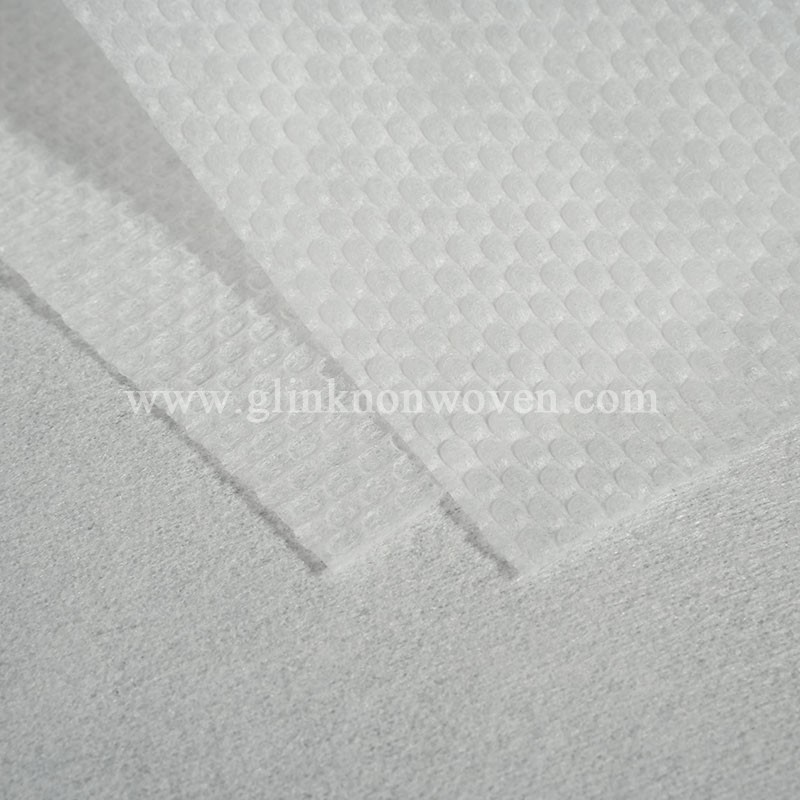

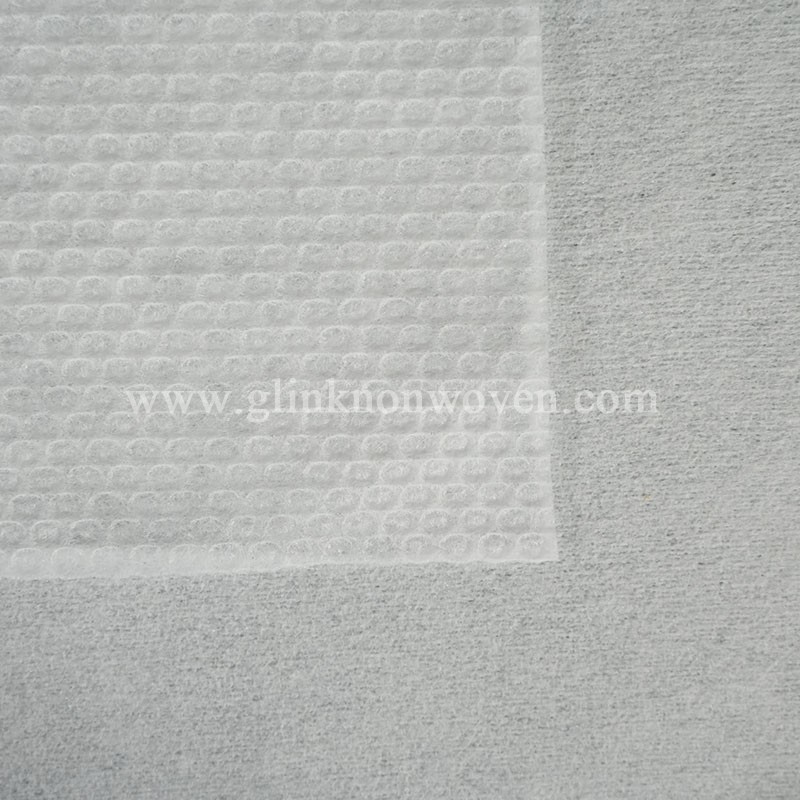

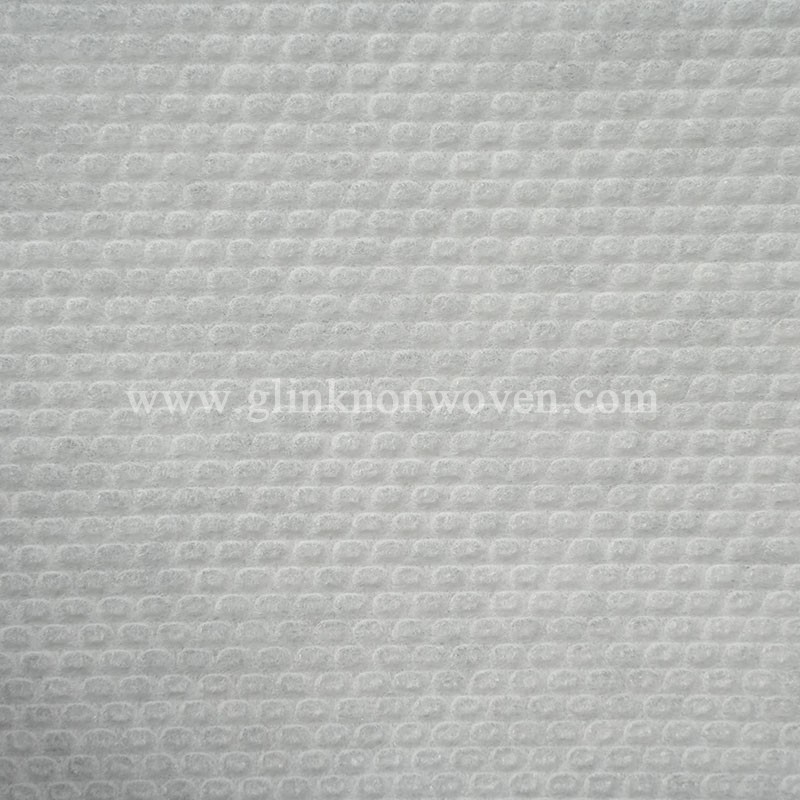

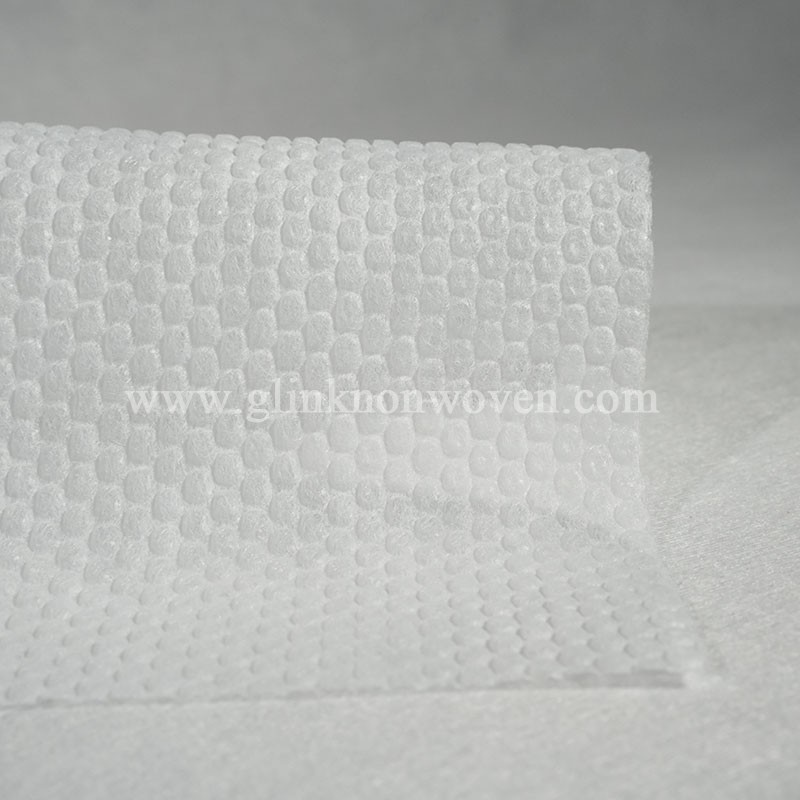

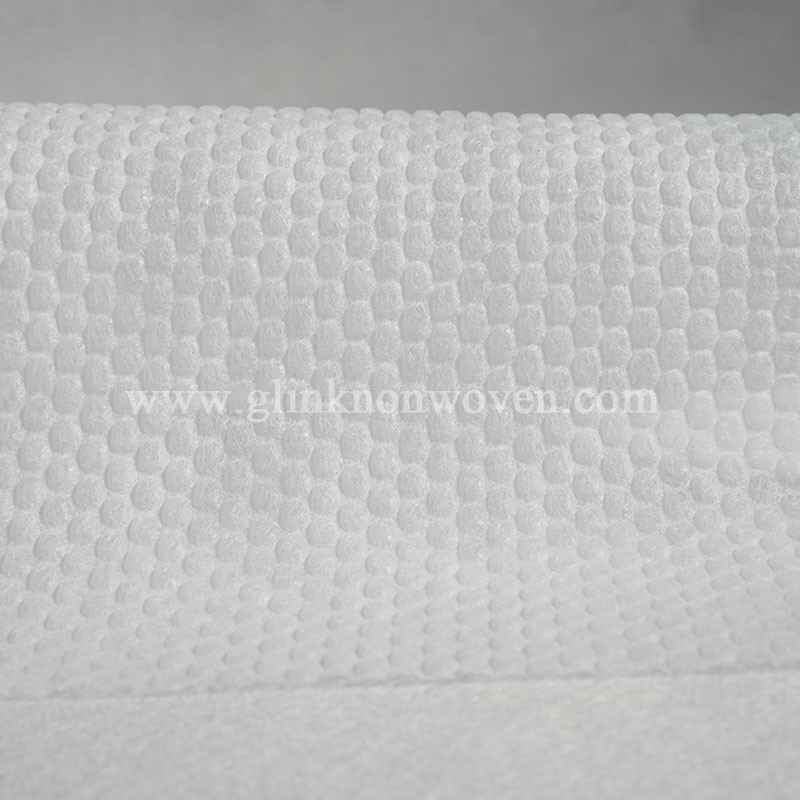

The 3D embossed nonwoven for adult diaper provides a more comfortable and healthy solution for adults who need to wear diapers for a long time. Its unique 3D embossed design not only enhances the three-dimensional and layered feel of the diaper, but also conforms to the curves of the human body, reduces friction with the skin, and improves the comfort of wearing. At the same time, the hot air bonding technology endows non-woven fabrics with good breathability and moisture absorption, which can quickly absorb urine and discharge moisture, keep the skin dry, and effectively prevent problems such as bedsores and diaper rash. Therefore, this diaper embossed air through nonwoven material has broad application prospects in the manufacturing of adult diapers.
Product Attributes
| Items | Unit | Requirement | Result | Judging | |||
| Min | Max | ||||||
| Color | / | white | white | OK | |||
| Basic weight | gsm | 20±2 | 18.5 | 21.5 | OK | ||
| Width | mm | 150±2 | 148 | 152 | OK | ||
| 3D- Dimensional Thickness | mm | ±0.2 | 0.46 | 0.55 | OK | ||
| Tensile strength | MD | N/5cm | ≥22 | 26.9 | 30.7 | OK | |
| CD | ≥4.0 | 4.8 | 6.2 | OK | |||
| Breaking elongation | MD | % | ≥20 | 49.6 | 57.5 | OK | |
| CD | ≥30 | 96.5 | 116 | OK | |||
| Fluid Penetrating Rate | 1st | S | ≤2 | 1.12 | 1.38 | OK | |
| 2nd | ≤3 | 2.15 | 2.63 | OK | |||
| 3rd | ≤4 | 2.97 | 3.67 | OK | |||
| Splice | pcs | ≤1 | 0 | 1 | OK | ||
| Column limit | mm | / | / | / | OK | ||
| End side plane(even)limite | / | Even | OK | ||||
| Material was suitable to use in hygiene product. | |||||||
Product Application
The application of white hot air 3D embossed hydrophilic nonwoven fabric in diapers can enhance the three-dimensional fit and improve the comfort of wearing.
Factory Workshop
The production process of white hot air 3D embossed hydrophilic non-woven fabric mainly includes fiber combing, hot air bonding, 3D embossing, and hydrophilic treatment. The fibers are combed to form a fiber web. It use hot air to penetrate the fiber mesh and heat it to bond it together; Then, 3D embossing technology is used to give the non-woven fabric a sense of three dimensionality and layering; Finally, perform hydrophilic treatment to enhance its moisture absorption. The entire production process requires strict control of various parameters to ensure product quality and performance.
Lab & Testing
Our factory has a professional R&D technical team, industry-leading production capacity and technology. The raw materials are double-verified to control the quality from the source, reducing the trial and error costs of overseas customers and ensuring stable quality.
Related Products
Our products cover spunbond nonwoven, SMMS hydrophobic nonwoven, thermal nonwoven, hot air nonwoven, frontal tape, side tape, fluff pulp, sap, hot melt glue, spandex and other raw materials for baby diaper, sanitary napkin, adult diaper, underpads and pull up diapers. You can contact us for more details.
Warehouse
We have a modern warehouse of over 10,000 square meters, providing customers with “one station” services, which can mix load different kinds of raw materials, which can help our customers to reduce cost.
Packing & Shipment
Our integrity, strength and product quality are recognized by the industry, and our products are also exported to Southeast Asia, Africa, South America and so on. We firmly believe that with a professional and capable service team and an integrity-based business philosophy, we will continue to create and output value for our customers, and will be able to work hand in hand with our partners to create a brilliant future.
Our Service
1. Cost analysis and cost reduction plan for the entire set of raw materials for finished products
2. One-stop procurement service for hygiene products raw materials
3. Free safety inventory in large warehouses and free consolidation of multiple materials
4. Provide a complete set of process reports and photos for orders
5. Monthly analysis report on the Chinese raw material market
6. Technical support for equipment
7. Raw material process solutions
8. Design and customization of special edition raw materials
