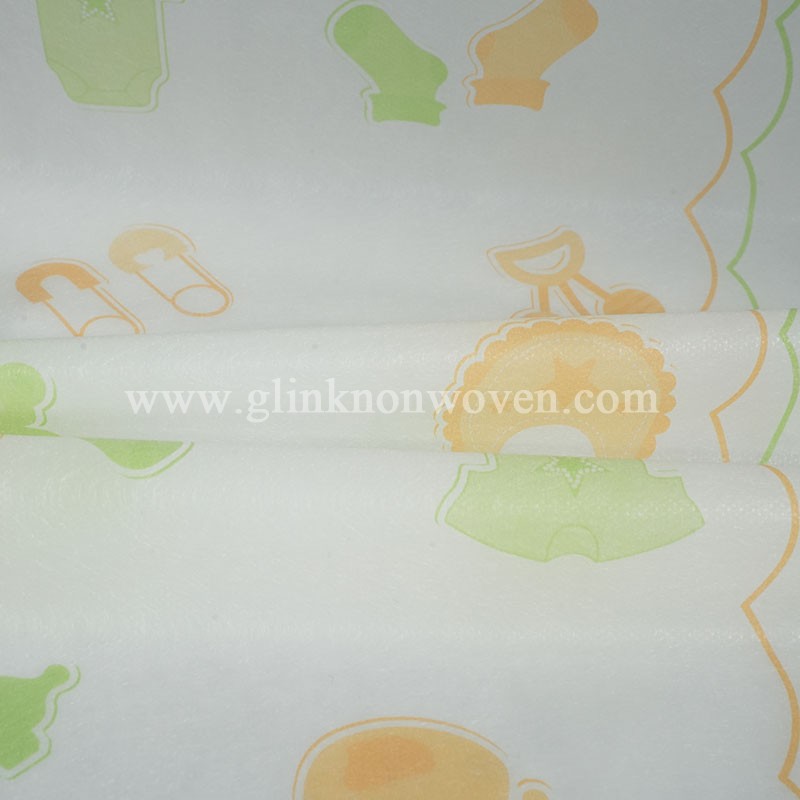

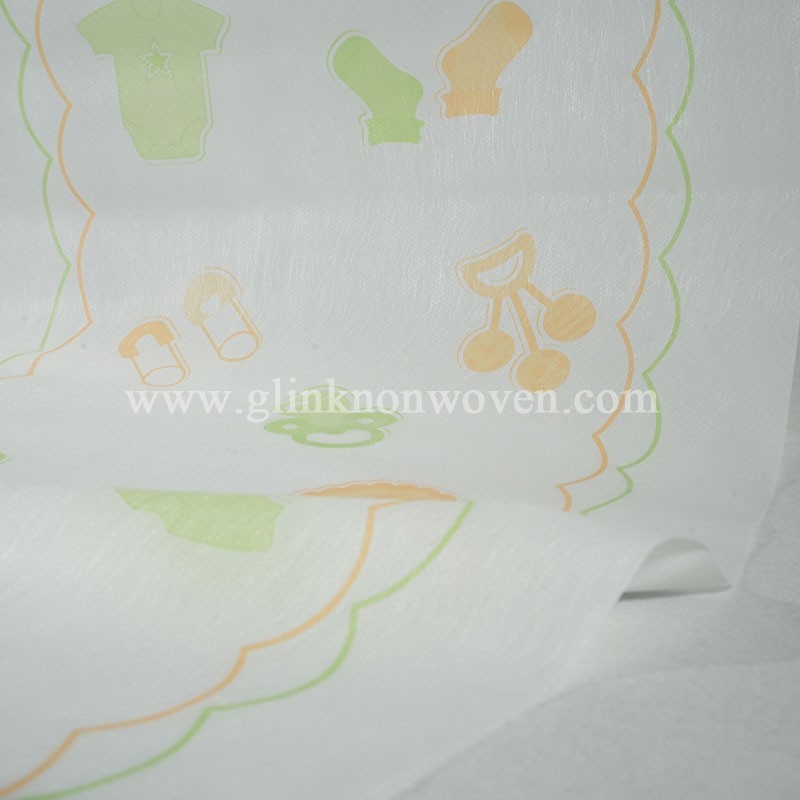

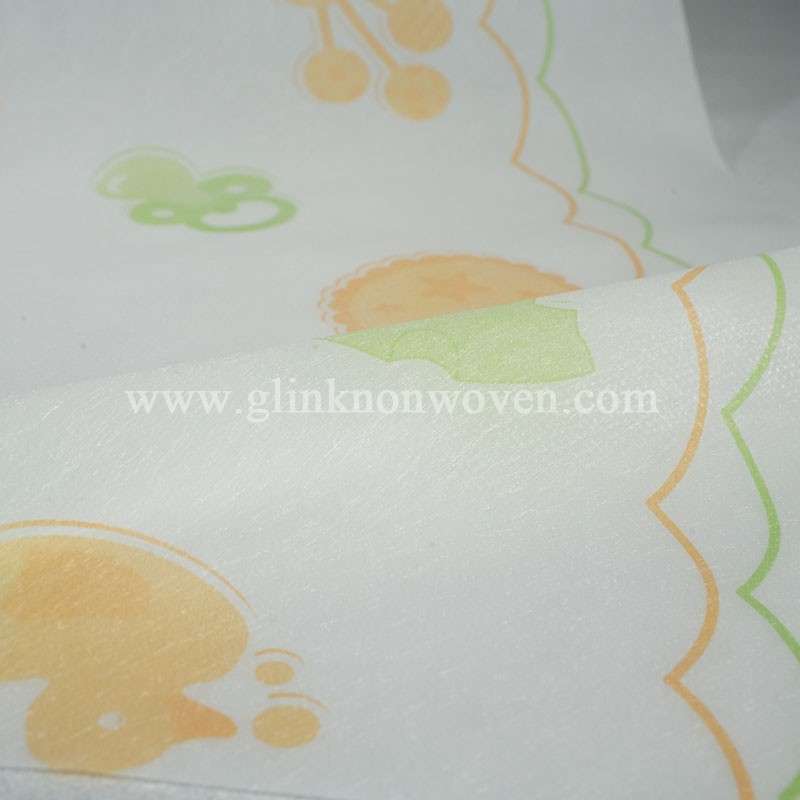

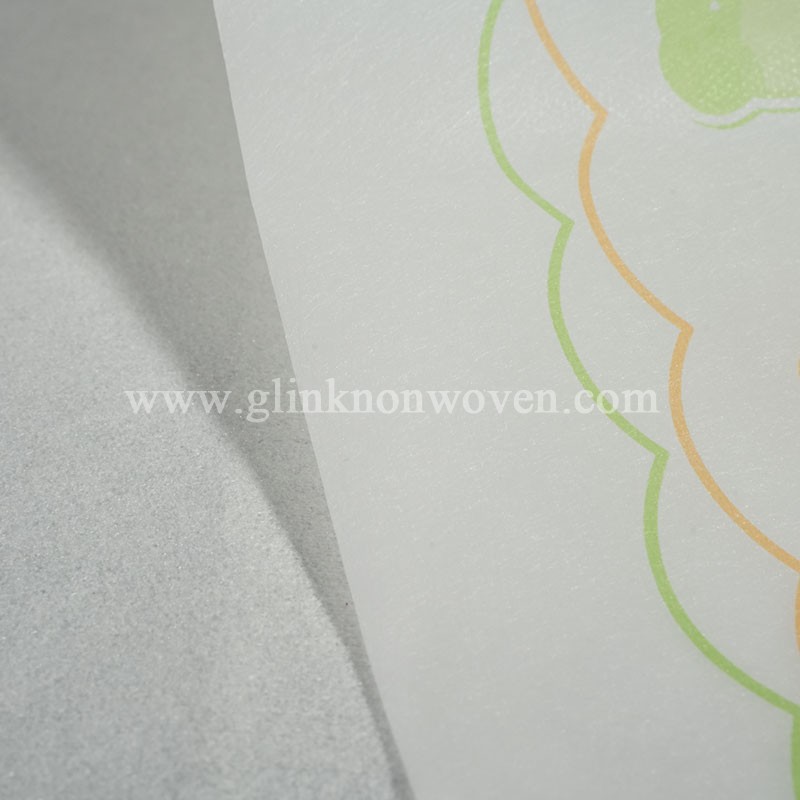

Textile backsheet full printed lamination film for big waistband diaper production
The main materials of the diaper laminated breathable bottom film include high molecular weight materials such as polyethylene (PE), polypropylene, and polyester. These materials are compounded through special processes, which not only ensure the strength of the base film, but also endow it with good breathability and moisture absorption.
Material :
Polyethylene +PolypropyleneBasic weight :
23-100 gsm, CustomizedWidth :
70-2200 mm, CustomizedColor :
Customized，1-8 colorsOuter roll diameter :
460mm-580mm, CustomizedProduction process :
Casting and LaminationHardness :
SoftPrinting :
CustomizedUsage :
BacksheetApplication :
Baby diaper, adult diaper, sanitary napkinPacking details :
In the roll, inside with paper core, wrapping by transparent film and paper board; Strandard export packingPayment terms :
T/T, L/C at sight, DP at sightDelivery time :
7-15 days after receipt of the deposit or L/CMinimum order quantity :
1000.00kgsProduct Description
As an essential product for modern diaper, the breathable full laminated backsheet film is undoubtedly the core. This clothlike backsheet film is carefully crafted from polymer materials such as polyethylene, polypropylene, and polyester, and is compounded through special processes to achieve a perfect balance between strength and breathability. The excellent barrier properties of polyethylene and polypropylene can effectively prevent urine leakage, while the addition of polyester makes the bottom film more elastic and wear-resistant. The design of the backsheet PE full laminating film aims to ensure that the inside of the diaper remains dry and comfortable, while allowing the outside air to circulate freely, reducing the stuffiness and heat when the baby wears it.
Product Attributes
| Items | Unit | Requirement | Result | Judging | ||
| Basic weight | gsm | 24±2 | 24.2 | OK | ||
| Width | mm | 320±2 | 320.5 | OK | ||
| Tensile strength | MD | N | ≥14.0N | 21.37 | OK | |
| CD | ≥5.0 | 7.8 | OK | |||
| Breaking elongation | MD | % | ≥30 | 64 | OK | |
| CD | ≥30 | 88 | OK | |||
| Peel force | MD | N | ≥0.3N/25mm | 1.04 | OK | |
| CD | ≥0.3N/25mm | 1.11 | OK | |||
| Anti hydrostatic pressure | Pa | ≥6000 | 6224 | OK | ||
| Corona | dyne | ≥38 | 38 | OK | ||
| Breathability | g/24h/㎡ | 1500-3200 | 2247 | OK | ||
| Material was suitable to use in hygiene product. | ||||||
Product Application
The backsheet PE full laminating film is the key raw materials for diapers making, which can be used in the production of baby diapers, adult diapers, disposable nursing pads and sanitary napkins.
Factory Workshop
PE full laminating film for baby diaper enables diapers to keep babies' buttocks dry and comfortable, effectively avoiding skin diseases such as diaper rash. And PE materials full lamination film also have strong durability and environmental friendliness, meeting the needs of modern consumers.
Lab & Testing
Our factory has a professional R&D technical team, industry-leading production capacity and technology. The raw materials are double-verified to control the quality from the source, reducing the trial and error costs of overseas customers and ensuring stable quality.
Related Products
Our products cover spunbond nonwoven, SMMS hydrophobic nonwoven, thermal nonwoven, hot air nonwoven, frontal tape, side tape, fluff pulp, sap, hot melt glue, spandex and other raw materials for baby diaper, sanitary napkin, adult diaper, underpads and pull up diapers. You can contact us for more details.
Warehouse
We have a modern warehouse of over 10,000 square meters, providing customers with “one station” services, which can mix load different kinds of raw materials, which can help our customers to reduce cost.
Packing & Shipment
Our integrity, strength and product quality are recognized by the industry, and our products are also exported to Southeast Asia, Africa, South America and so on. We firmly believe that with a professional and capable service team and an integrity-based business philosophy, we will continue to create and output value for our customers, and will be able to work hand in hand with our partners to create a brilliant future.
Why choose us?
1. Intensive procurement to reduce costs
2. Double quality control
3. Focus on the hygiene products industry, professional manufacturers and one-stop service providers
4. Worry-free after-sales service
5. R&D team and invention certificate
6. 15+ professional equipment engineers one-to-one technical support service
7. Core members of the service team, with more than 15+ years of industry experience
8. Professional design team provides free design solutions
The PE diaper clothlike backsheet in diapers plays an important role in diaper manufacturing due to its lightweight, transparent, waterproof, moisture-proof, good breathability, adjustable thickness, and printed patterns. It not only ensures the quality and functionality of diapers, but also enhances the product's aesthetics and consumer experience.
