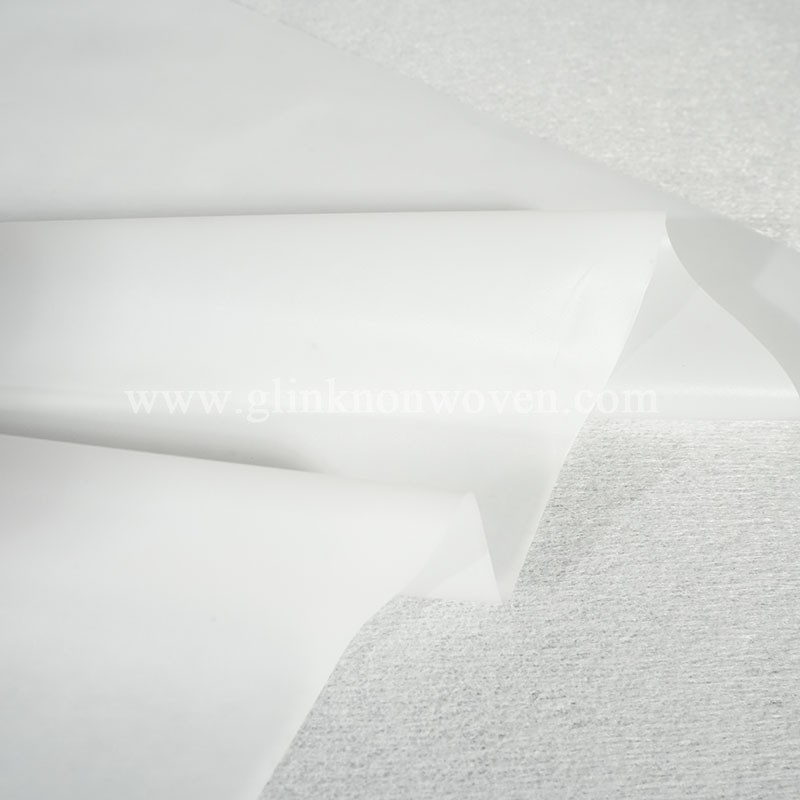

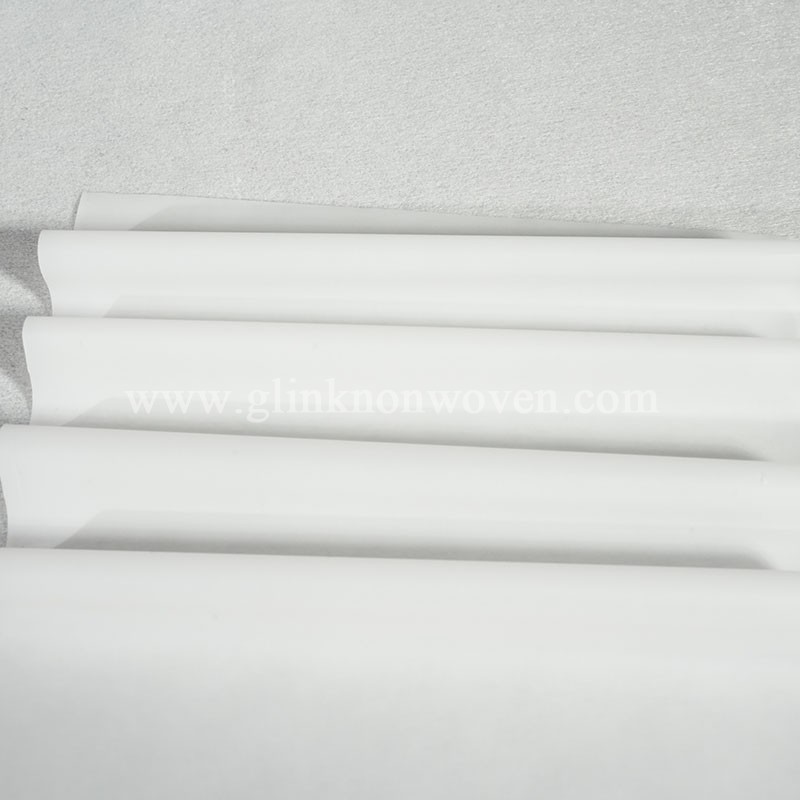

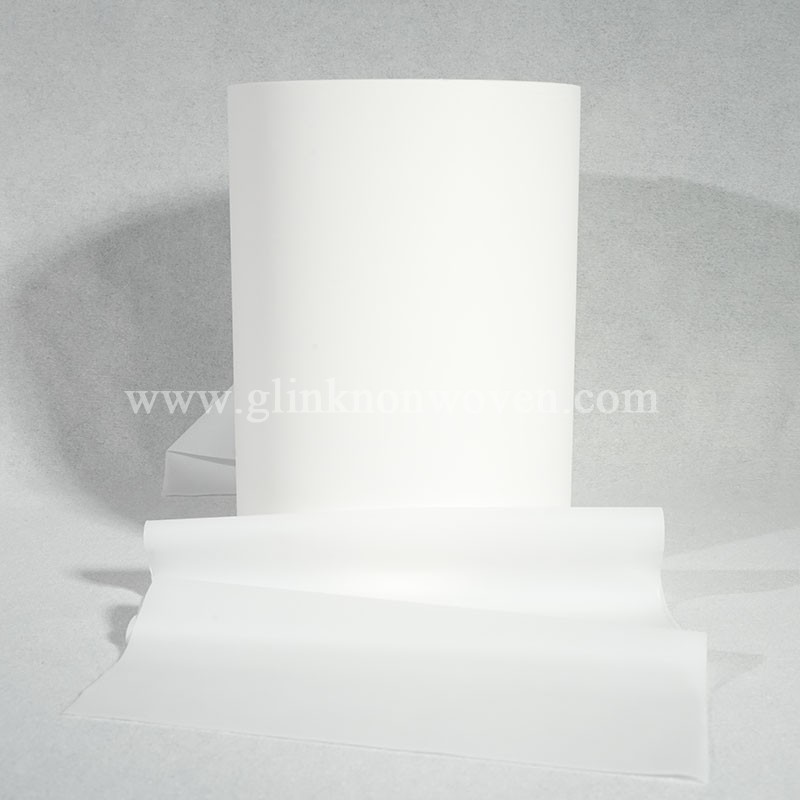

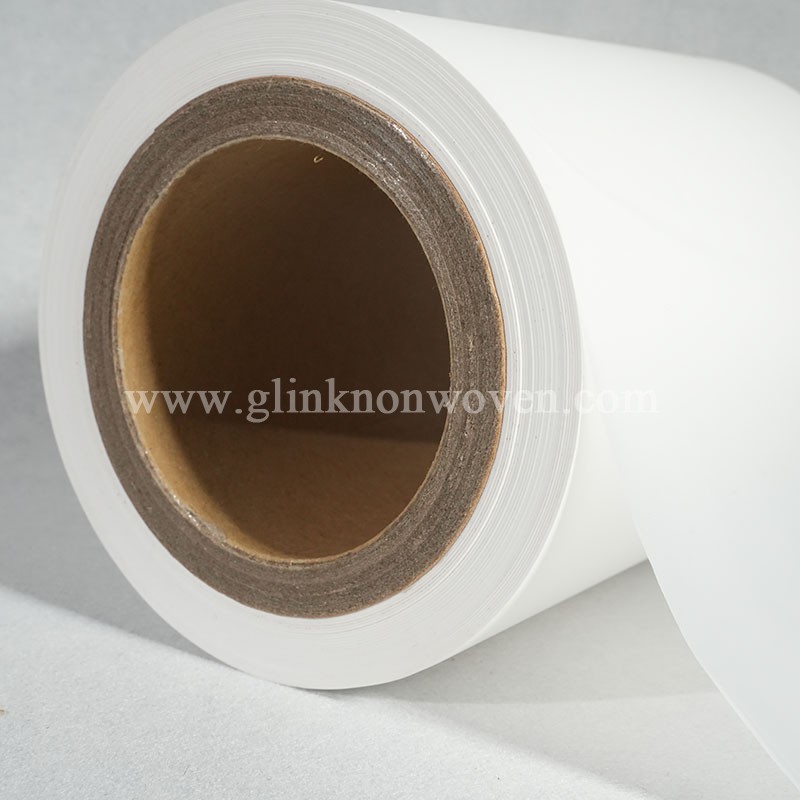

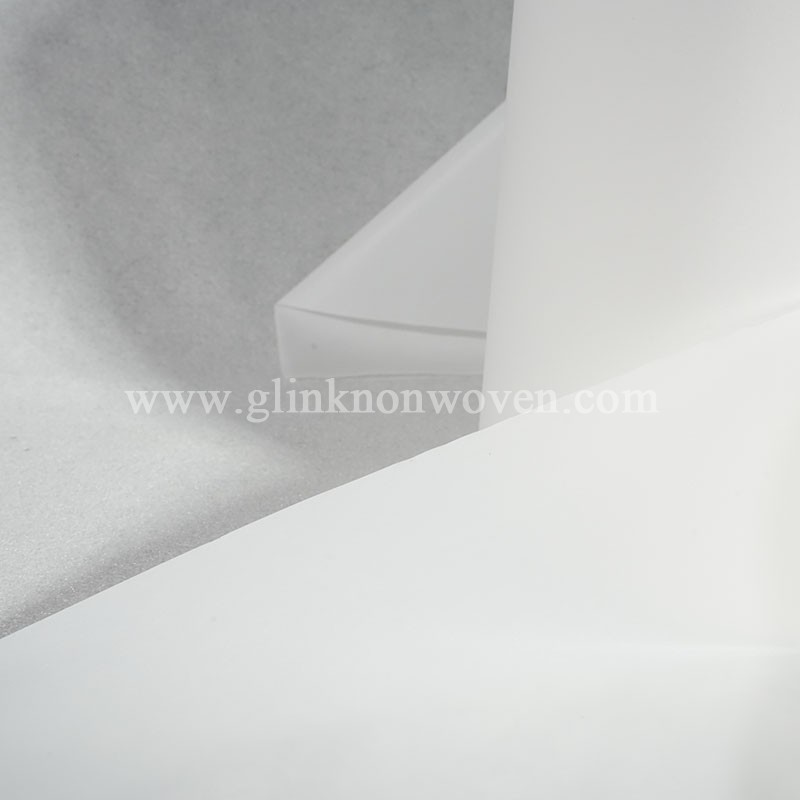

The non breathable PE film backsheet, mainly made of polyethylene (PE), is produced through a specific process and has the characteristics of good waterproofing, flexible texture, and low cost.
Material :
50% Polyethylene+50% calcium carbonateBasic weight :
15-32gsmWidth :
CustomizedColor :
CustomizedOuter roll diameter :
460mm-580mm, CustomizedProduction process :
CastingHardness :
SoftPrinting :
CustomizedUsage :
BacksheetApplication :
Baby diaper, adult diaper, sanitary napkinPacking details :
In the roll, inside with paper core, wrapping by PE film and paper board; Strandard export packingPayment terms :
T/T, L/C at sight, DP at sightDelivery time :
7-15 days after receipt of the deposit or L/CMinimum order quantity :
1000.00kgsProduct Description
Non breathable PE film is very important in nursing pads. It is like a sturdy barrier, effectively isolating moisture. Whether it is urine or other liquids, it cannot penetrate this film, thus keeping the clothes and bed sheets under the care pad dry. This feature is particularly important for patients who need to stay in bed for a long time or people with limited mobility, as it can greatly reduce the burden of care and improve the comfort of users. Meanwhile, underpads film raw material also has excellent antibacterial properties, which can block external bacteria from coming into contact with the skin, reduce the risk of infection, and provide users with safer protection. In addition, its high strength and wear resistance make the care pad more durable, less prone to damage, and extend the product's service life.
Product Attributes
| Items | Requirement | Result | Judging | |
| Basic weight | 18±1.5 | 17.5 | OK | |
| Width | 190±2 | 190.0 | OK | |
| Tensile strength | MD | ≥5 | 9. 86 | OK |
| CD | ≥2 | 2.10 | OK | |
| Breaking elongation | MD | ≥100 | 210 | OK |
| CD | ≥200 | 409 | OK | |
| Anti hydrostatic pressure (Pa) | ≥3000 | 3712 | OK | |
| Corona (dyne) | ≥38 | 38 | OK | |
| Breathability (g/24h/㎡) | ≥800 | 2912 | OK | |
| Material was suitable to use in hygiene product. | ||||
Product Application
The white backsheet PE film is the key raw materials for disposable underpads making, which can be used in the production of baby diapers, adult diapers, disposable nursing pads and sanitary napkins.
Factory Workshop
The production process of underpads back sheet films to put PE resin particles into a mixer, add an appropriate amount of additives, and through high-temperature and high-pressure stirring and plasticization, fully melt and mix the PE particles to form a uniform melt.
Lab & Testing
Our factory has a professional R&D technical team, industry-leading production capacity and technology. The raw materials are double-verified to control the quality from the source, reducing the trial and error costs of overseas customers and ensuring stable quality.
Related Products
Our products cover spunbond nonwoven, SMMS hydrophobic nonwoven, thermal nonwoven, hot air nonwoven, frontal tape, side tape, fluff pulp, sap, hot melt glue, spandex and other raw materials for baby diaper, sanitary napkin, adult diaper, underpads and pull up diapers. You can contact us for more details.
Warehouse
We have a modern warehouse of over 10,000 square meters, providing customers with “one station” services, which can mix load different kinds of raw materials, which can help our customers to reduce cost.
Packing & Shipment
Our integrity, strength and product quality are recognized by the industry, and our products are also exported to Southeast Asia, Africa, South America and so on. We firmly believe that with a professional and capable service team and an integrity-based business philosophy, we will continue to create and output value for our customers, and will be able to work hand in hand with our partners to create a brilliant future.
Our Service
1. Cost analysis and cost reduction plan for the entire set of raw materials for finished products
2. One-stop procurement service for hygiene products raw materials
3. Free safety inventory in large warehouses and free consolidation of multiple materials
4. Provide a complete set of process reports and photos for orders
5. Monthly analysis report on the Chinese raw material market
6. Technical support for equipment
7. Raw material process solutions
8. Design and customization of special edition raw materials
The materials of non breathable PE film is polyethylene (PE). Polyethylene is a synthetic resin made by polymerizing ethylene monomers. It has good heat resistance, chemical resistance, and mechanical properties.
